VNA Very Narrow Aisle Racking

VNA narrow aisle racking is a core storage equipment for high-density warehouse expansion, suitable for storing various finished products and raw material palletized goods. Whether it's an e-commerce warehouse, a manufacturing raw material warehouse, or a third-party logistics warehouse, compatible narrow aisle racking can significantly increase warehouse storage capacity, shorten goods storage and retrieval time, and reduce warehousing land costs. Below, we'll provide a detailed overview of VNA narrow aisle racking parameters and supporting solutions!

VNA Very Narrow Aisle Racking Advantages

Narrow aisle racking addresses both the core needs of high-density warehousing and full pallet free picking. Compared with traditional beam racking, it has multiple advantages in terms of space, efficiency, flexibility, safety, and cost. Below is a detailed breakdown of its core benefits.

Advantages in Storage and Inventory Management

Each unit of goods can be stored and retrieved independently, enabling 100% full picking capability. Unlike drive-in and stacker high-density racking, any pallet can be directly accessed and placed, perfectly adapting to the FIFO (First-In, First-Out) inventory management model. One-to-one correspondence between storage locations and pallets ensures clear and standardized inventory management.

Advantages in Space and Storage Capacity

Reduced aisle area, saving up to 40% of usable warehouse space. Compact racking layout and adjustable shelf height allow for the addition of more racking areas, significantly increasing overall storage capacity. Fully utilizes warehouse vertical height; compared to ordinary racking, it can be built up to 18 meters high. Meters, fully utilizing warehouse's automated storage capacity: Multiple rows of shelves can be added after compressing aisle width, eliminating the need for warehouse expansion or leasing external storage space, saving significant expansion costs.

Flexible Adaptability and Modification Advantages

Easy to assemble and disassemble; beam height can be flexibly adjusted to adapt to various storage needs. Adaptable to goods of various weights and sizes; adjustable shelf height or the addition of specialized storage accessories enables flexible storage. Supports direct stacking of palletized goods on the ground floor. Can be upgraded with stacker cranes to create a fully automated automated storage system.

Operational Efficiency Advantages

Organized goods placement and unobstructed access significantly improve shelving and order picking speeds

Operational Safety Advantages

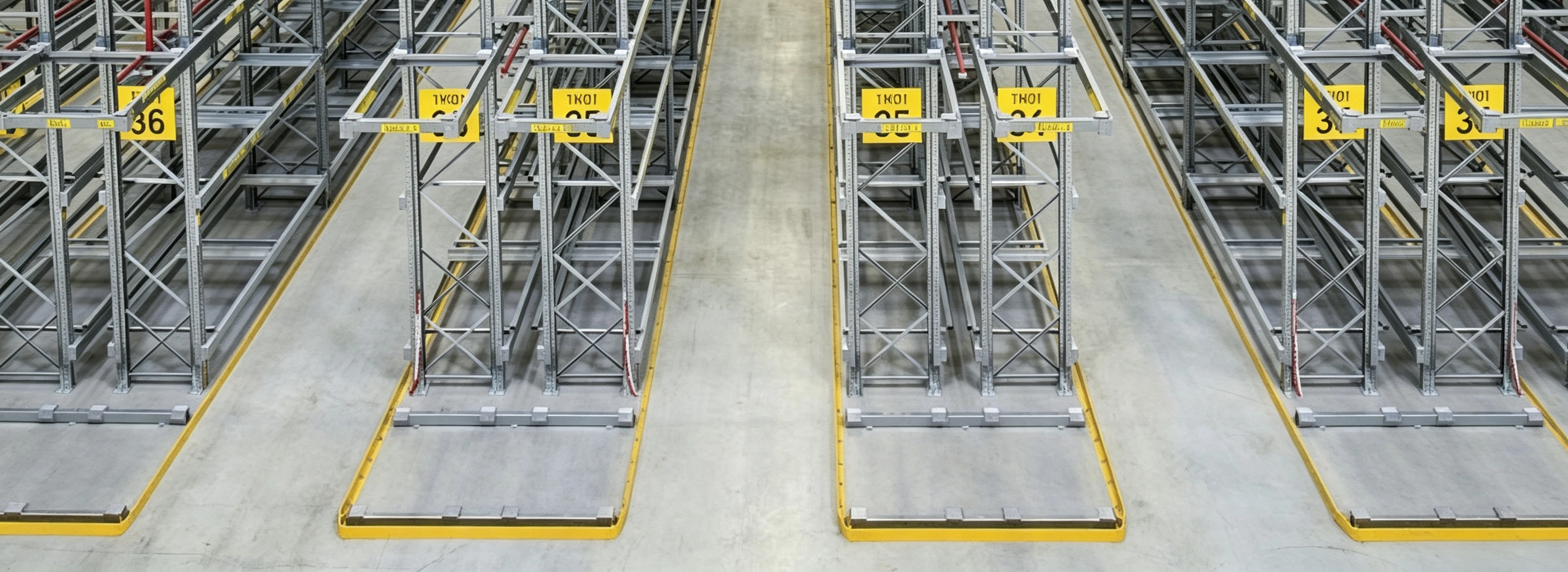

Equipped with three-way stacker trucks and articulated forklifts, combined with ground rails or underground magnetic guidance devices, forklifts travel stably and centrally, avoiding collisions with shelves and goods, ensuring the safety of personnel and goods.

Cost Control Advantages

Requires less warehouse space for the same storage capacity, significantly reducing the overall cost per pallet storage.

Very Narrow Aisle Racking Application

VNA narrow aisle racking boasts exceptional versatility, combining warehouse flexibility with space optimization capabilities. It offers the dual advantages of full pallet access and high-density storage, making it suitable for various warehousing operations and essential warehousing needs.

Large-Scale High-Density Distribution Centers

Suitable for large-volume goods distribution operations, supporting 100% independent access to any SKU pallet. It balances ultra-high storage density with real-time picking capabilities, adapting to high-frequency inbound and outbound operations and precise goods scheduling, meeting the efficient sorting and shipping needs of distribution centers

hird-Party Logistics (3PL) Warehousing

Suitable for storing non-standard, irregularly shaped, and differentiated goods. It supports the management of multi-category, non-homogeneous goods, perfectly matching the fast turnover rate, complex product categories, and diversified managed goods requirements of third-party warehousing operations.

Ample Ceiling Height Warehouse for Owned Factories

Suitable for factories with a ceiling height of 15 meters or more, eliminating the need to expand factory floor space. Utilizing vertical space, storage capacity is increased upwards. Suitable for separate storage of raw materials, spare parts, and finished products, accommodating differentiated inventory storage for factories

Warehouse for Enterprises with Limited Floor Space

For enterprises with limited warehouse space and unable to expand storage areas, this warehouse reduces aisle area, saving warehouse space. Multiple rows of shelves can be arranged as needed, increasing total storage capacity within the existing site and eliminating the need for external warehouse rentals or factory expansion costs

High-Turnover New Retail Goods Warehouse

Suitable for retail goods with diverse categories, high inbound/outbound frequency, and fast inventory turnover. Provides immediate access to each goods unit, compatible with FIFO (First-In, First-Out) inventory management, efficiently completing the entire process of replenishment, picking, and outbound shipment.

Dedicated Warehouse for Multi-Specification Unit Goods

Adaptable to warehouse areas with inconsistent pallet sizes, goods weights, and outer packaging forms. Adjustable shelf height and the ability to add dedicated storage accessories allow for flexible adaptation to various unit loads. One-to-one correspondence between storage locations and goods ensures clear and convenient inventory management.

If your warehouse has insufficient floor space, a wide variety of goods with fast turnover, and requires the immediate access to any pallet, you are welcome to customize a VNA narrow aisle racking system expansion solution.

What factors affect VNA Very Narrow Aisle Racking price

The cost of a single pallet racking unit for ultra-narrow aisle (VNA) racking ranges from $50 to $150, which translates to approximately $0.85–$1.50 per pound in steel raw material costs. The total price of the entire system fluctuates depending on the warehouse layout. Due to the high standards and strict requirements for floor load-bearing capacity and flatness, the overall cost is 15%–20% higher than that of ordinary beam racking.

Production Costs of the Shelving Unit

The height, depth, and beam length of the shelving determine the amount of steel used. High-rise shelving requires thicker uprights and seismic reinforcement. Surface finishes such as powder coating and hot-dip galvanizing are available, and the addition of accessories like anti-collision feet and mesh shelves will increase costs.

Warehouse Infrastructure Renovation and Long-Term Operation and Maintenance Costs

Infrastructure Investment: VNA (Variable Reinforced Aerial) shelving has extremely high requirements for ground flatness tolerances. If the existing floor does not meet the standards, additional costs will be incurred for grinding, leveling, or re-plastering. Guide rails and magnetic/laser guidance systems also need to be installed, with significant differences in installation costs between different guidance solutions. Long-Term Maintenance: Guide rails, shelving components, and flooring will experience wear and tear over time, resulting in ongoing maintenance costs due to regular inspections and replacement of parts. Labor Costs: Operating VNA-specific forklifts has a higher skill threshold, requiring specialized training and certification. Long-term labor salaries and skills training constitute fixed expenses.

Specialized Supporting Equipment and Hidden Costs

Equipment Procurement: With rack aisles only 1.5–1.8 meters wide, ordinary forklifts cannot be used; specialized warehousing equipment such as high-reach stackers and articulated forklifts must be purchased separately. Hidden Costs: Equipment depreciation and wear, regular annual inspections, site re-surveying and optimization, and future rack upgrades are all easily overlooked additional costs.

Plan the layout of the reservoir area in advance to avoid additional hidden costs from secondary renovations after completion.

Please specify your requirement by referring to the following aspects:

1- Describe the type of project (e.g., logistics warehouse, cold storage, factory workshop, tire storage center, e-commerce fulfillment hub, etc.).

2- List the specific racking or type (e.g., pallet racking, cantilever racking, tire racking, industrial shelving, heavy duty storage rack, etc.).

3- Tell us your estimated rack installation or project launch date.

4- Detail your specific requirements or expectations (e.g., warehouse size, load capacity, storage environment, etc.).

5- If you are interested in becoming our distributor, please let us know.
